Nissan S14/15 SR20DET Fuel Rail Kit by Radium Engineering

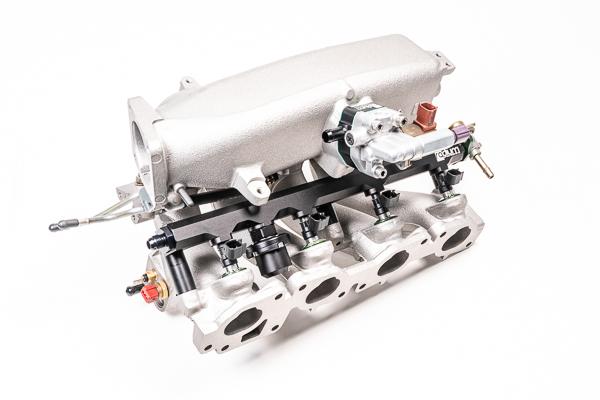

Manufactured with a 0.69″ large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included insulating spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted.

To resist oxidation corrosion, the lower billet aluminum injector seats are anodized and laser etched. They are O-ring sealed and designed for 14mm top feed injectors. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM 2-bolt IACV bypass hard line is replaced by a billet aluminum IACV spacer kit to gain clearance for the top feed fuel rail. An anodized aluminum barb adapter and rubber hose is supplied to reroute the charge pipe hose externally to the manifold. One gasket is included for the IACV spacer

Features

• Black Anodized Aluminum Fuel Rail
• Thermal Insulating Spacers and Washers
• Green Anodized Aluminum 25mm Injector Seats
• Radium 20-0162, Black Anodized Aluminum IACV Spacer Kit
• IACV Gasket, SR20DET S14/S15
• Black Anodized Aluminum IACV Barb Adapter
• Rubber Hose and OEM Clamp for IACV
• Includes All Necessary Hardware

Please Note: Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

Applications

• 1995 – 2002 Nissan S14/S15 SR20DET

What’s In The Box?

• 1 – Fuel Rail
• 3 – Thermal Insulating Spacers
• 3 – Thermal Insulating Washers
• 4 – 25mm Injector Seats
• 1 – IACV Spacer Kit
• 1 – IACV Gasket, SR20DET S14/S15
• 1 – IACV Barb Adapter
• 1 – Rubber Hose and OEM Clamp for IACV
• 3 – Stainless Steel M8x1.25 Mounting Bolts
• 3 – Stainless Steel M6x1 Mounting Bolts

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
